Working with data loaded from Android device

Top  Previous  Next

Adding data from Android device

To start working with data loaded from Android device:

1.Connect the Android device to the machine with EXWA installed.

2.Make sure the USB Debugging Mode is enabled on the device.

3.In the Backups Library pane, click the Acquire data for Android device icon android_icon.

4.In the opened menu, click the Load from device icon android_device.

NOTE: If you do not have the latest version of Java installed, the message with the link to download it will be displayed. Download and install the latest Java version.

5.Click Check.

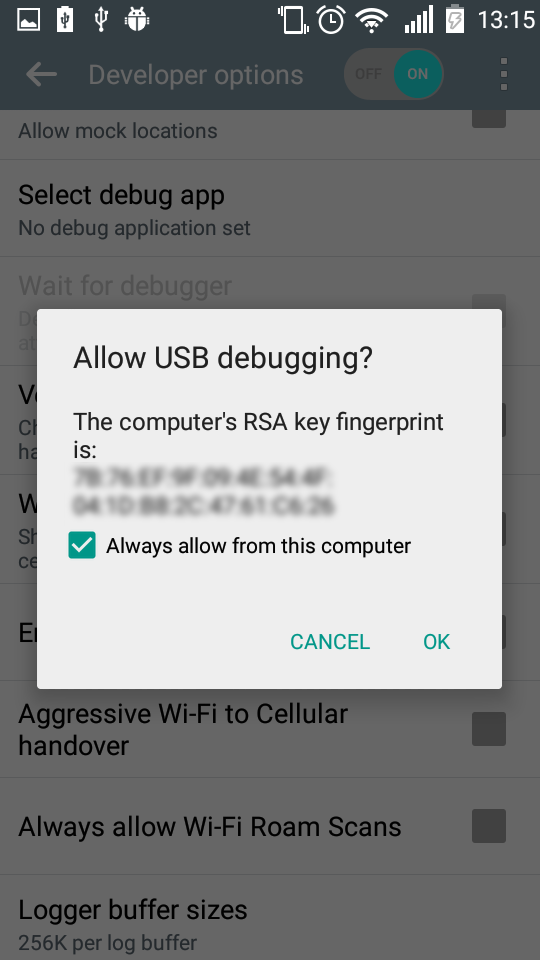

6.On the unblocked device, tap Always allow from this computer and allow the device to communicate to the computer.

device_002

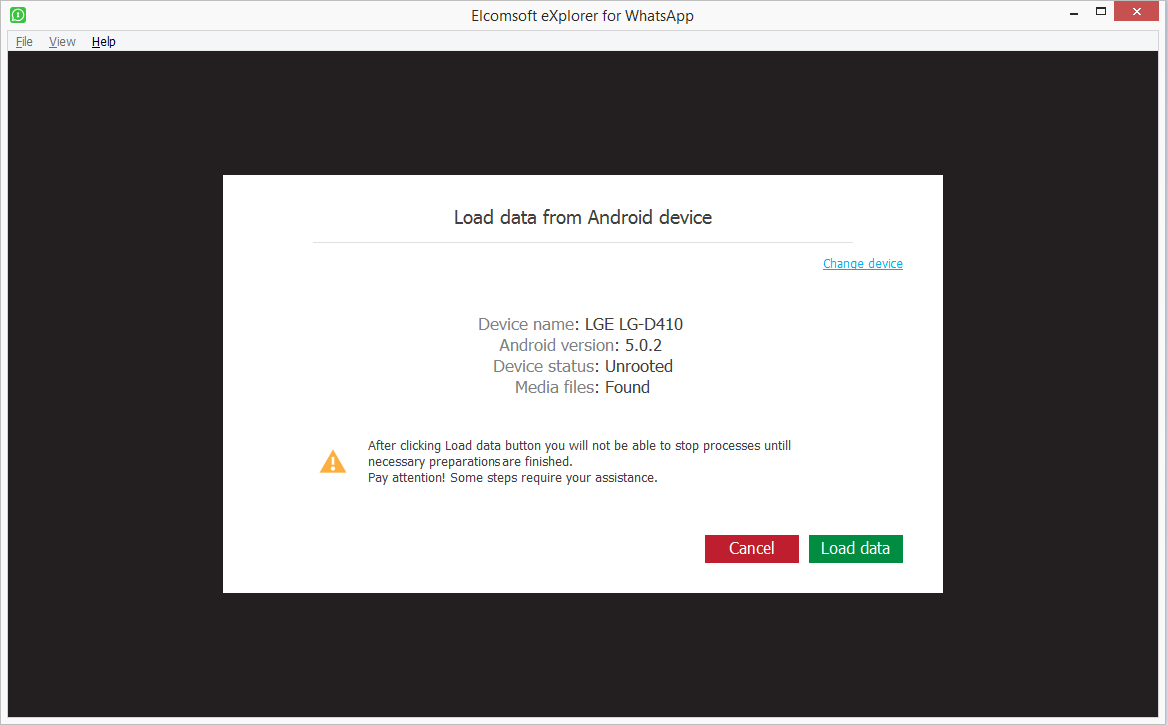

7.Once the connection is established, the following information about the device is displayed:

Device name

Android version

Device status (rooted, unrooted)

Media files (found, not found)

EXWA_load_from_device_004

8.Click Load data.

9.Backup preparation starts. Some steps may require your assistance:

NOTE: The connection between the device and the computer might break during preparation due to the state of the adbd daemon on the device. If this happens, click Check and try to load data again.

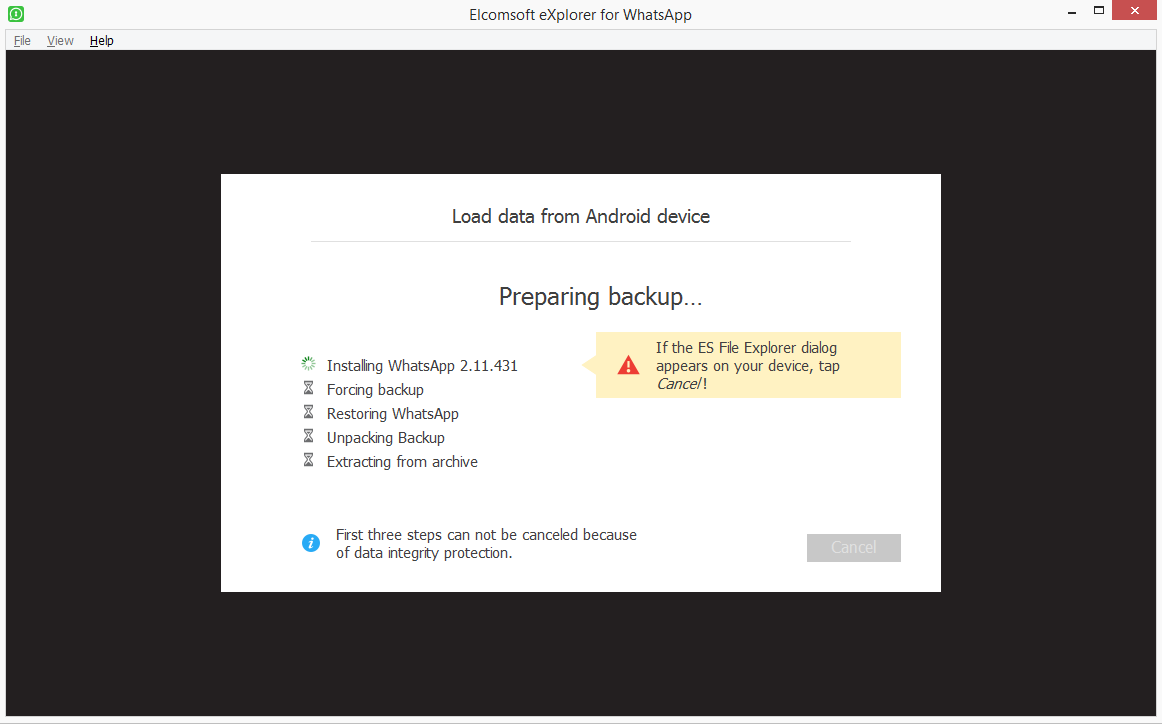

oInstalling WhatsApp. If the ES File Explorer dialog appears on the device, tap Cancel.

EXWA_load_from_device_005

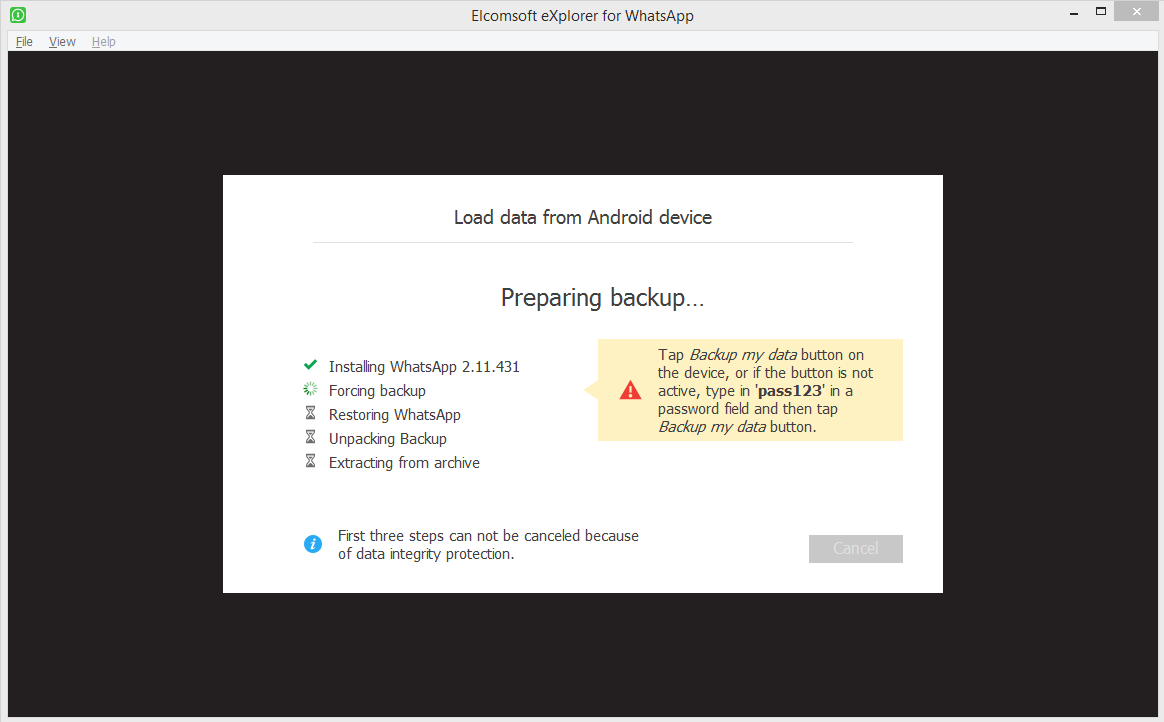

oForcing backup.

EXWA_load_from_device_006

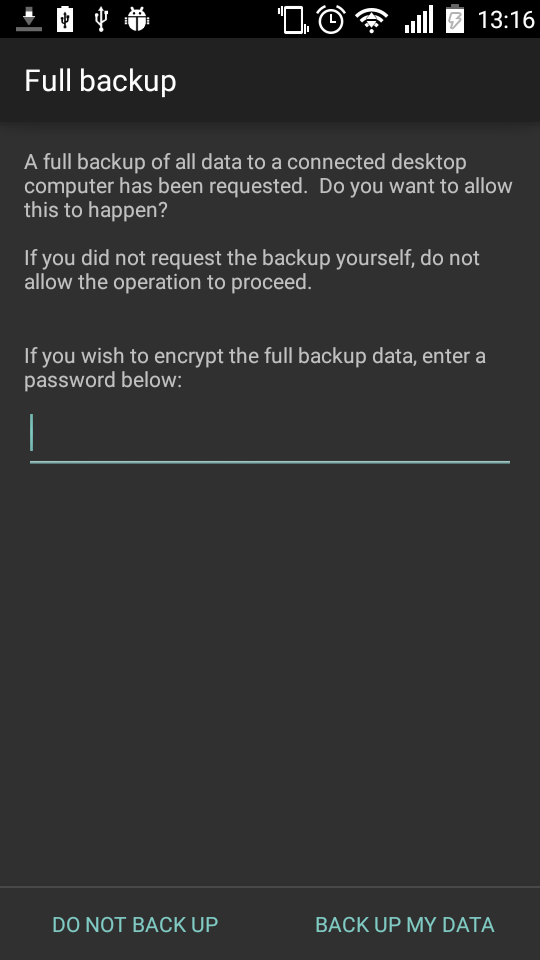

Tap Backup my data on the device. If the button is not active, type in 'pass123' in a password field and then tap Backup my data.

device_003

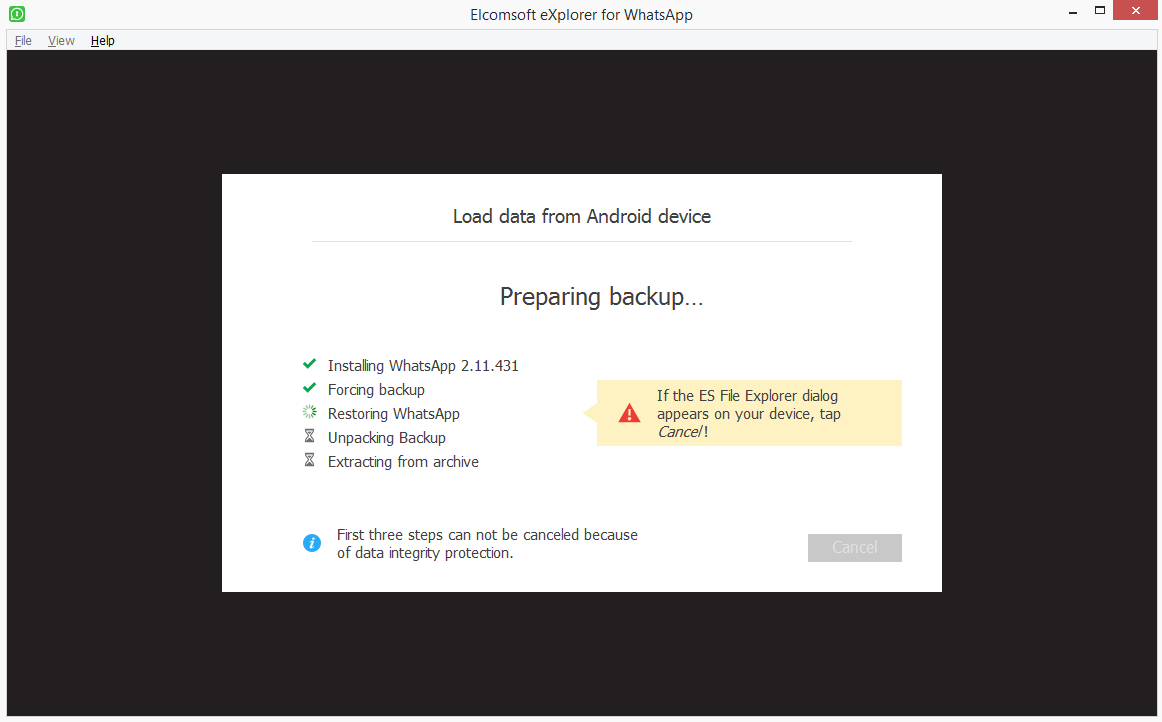

oRestoring WhatsApp. If the ES File Explorer dialog appears on the device, tap Cancel.

EXWA_load_from_device_007

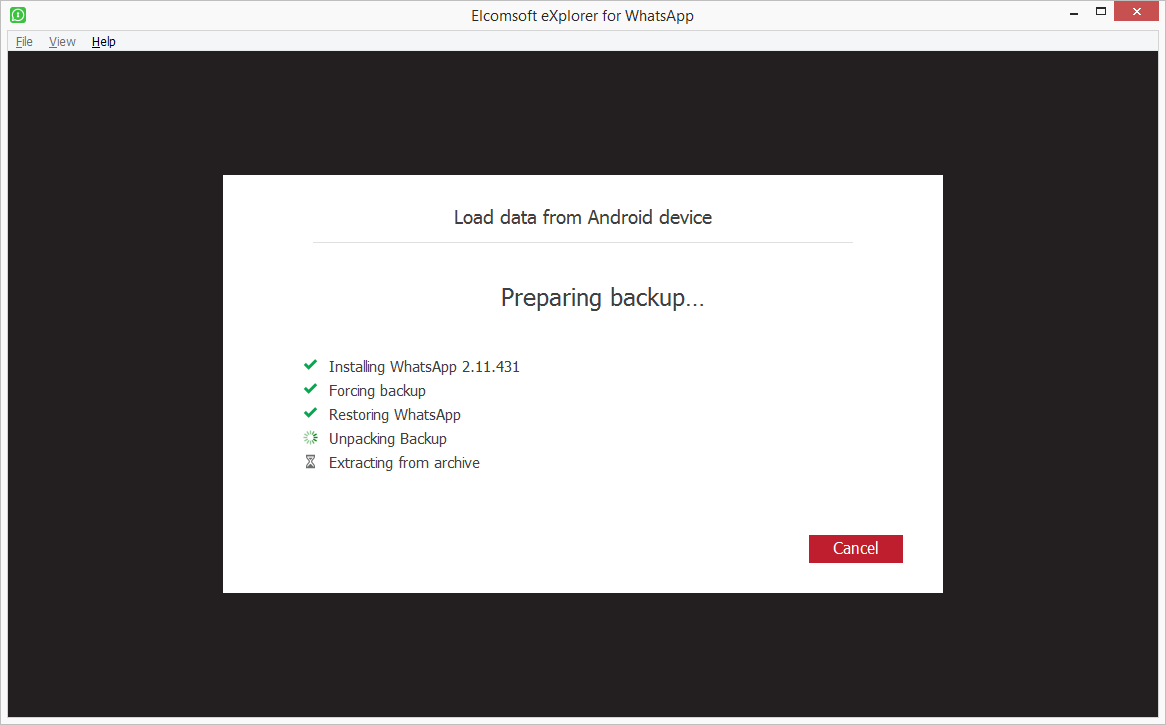

oUnpacking Backup.

EXWA_load_from_device_010

oExtracting from archive.

EXWA_load_from_device_009

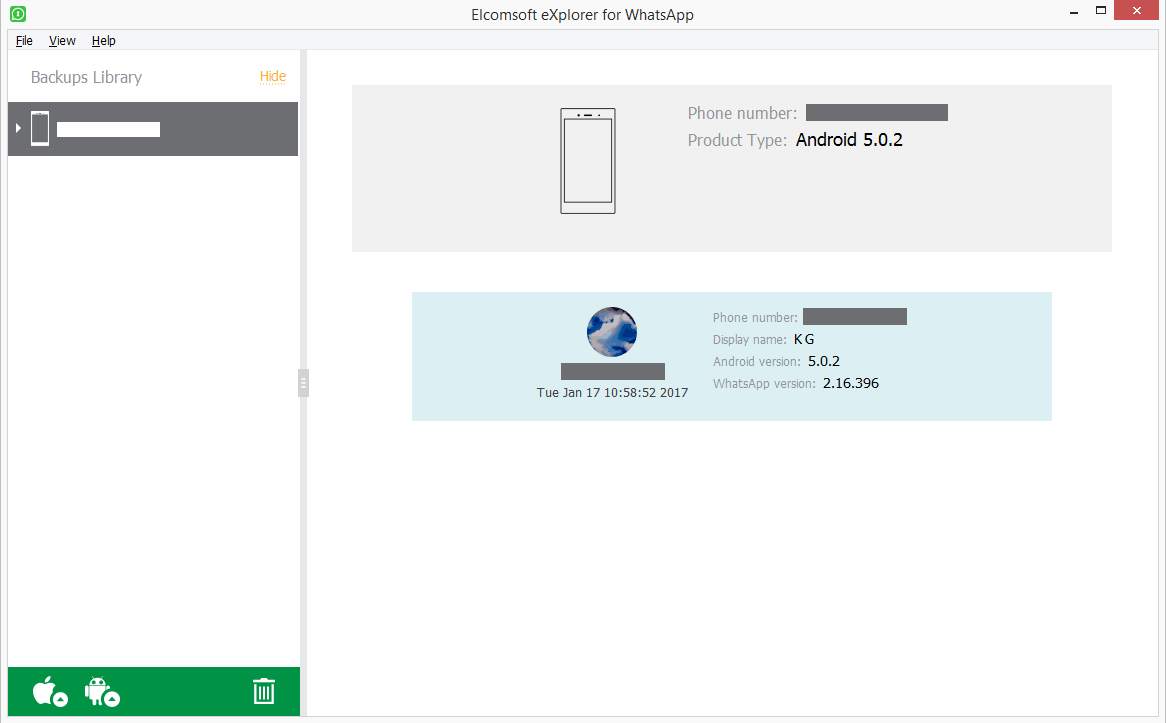

10. Once the backup is loaded and WhatsApp data is processed, the following information about the device is displayed:

Phone number

Product Type (Android version)

android_load_from_device_001

The lower part of the window displays the userpic, phone number, and the backup date (according to the time zone and date format defined on the local PC) as well as the following WhatsApp information (some of it may not be available):

Phone number

Display name

Status

Google account

Android version

WhatsApp version



Viewing data

When you select the target WhatsApp backup in the Backups Library, the lower part of the window displays all plugins available (some of them might be disabled if there is no appropriate information in backup):



Calls

Contacts

Media

Messages



Click the plugin icon to view the contents.





Exporting data

EXWA allows you to export data from a backup to your PC. Data is exported to an XLSX file, and all attachments/files are saved to a folder in the same location as the XLSX file.

Please note that data export is only available in the registered version of the program.



To export data, do the following:

1. In the Data View pane, click Export data.

2. Select the data categories to export.

3. Define the time interval for which you want to export data as follows: enable filters by switching the On/Off toggle and then select the dates in the From and Until fields.

4. Click Export.

5. The window will open in which you can select the location for exported data.

6. Once you select the location, click Save.

7. Data export will start.

8. To open exported data, click the icon next to the Data has been exported message highlighted in yellow or open it from the location to which it was saved.
