Messages

Top  Previous  Next

This plugin allows you to explore the user's message history.

Left pane of the window shows the contacts (phone number, name, or email -- depends on the conversation type) any conversation has ever been made with.

You can view the following kinds of messages for each contact:

SMS

MMS (only for iOS and BB devices)

iMessages (only for iOS devices).

Handwriting (only for iOS 10 and higher devices)

Digital Touch (only for iOS 10 and higher devices)

Reactions (only for iOS 10 and higher devices)

Effects (only for iOS 10 and higher devices)

Stickers (only for iOS 10 and higher devices)



Incoming messages are shown on the left and outgoing messages are shown on the right. The number of messages for every contact is shown (in brackets). You can also view the group chats.

The emoji are displayed in both message texts and contacts (they are supported for other plugins as well).

For iOS devices, SMS are shown in green color, MMS are shown in gray, and iMessages are shown in blue.



Viewing Attachments



For iOS and BlackBerry backups you can also view the message attachments of the following types:

iOS backups: pictures, audio, videos, and Google Maps locations.

BlackBerry backups: pictures, audio, videos, Google Maps locations, appointments, files, and contacts.



NOTE: In backups made for iPhone 7 and higher running iOS 11 and higher, there can be HEVC (video) and HIEF (image) files.

Files of such formats are created if the user turns on the High Efficiency setting in Settings > Camera > Formats.

Currently, HEVC video files can be viewed in EPV on Windows (if special codecs are installed) and on macOS 10.13 High Sierra.

For HIEF image files, only previews are available.



To save the attachments to your computer, click Save next to the selected attachment, define the destination folder in the opened window, and then click Save.



Please note that for BlackBerry and iOS devices the time is stated as it is (was) set on the device; for Windows Phone – the time is the same as on the local PC (the actual time zone of the device is not available).

If the timezone of the device is not detected for BlackBerry and iOS devices, the time will be displayed in UTC time and the corresponding warning will be displayed in the Journal of the View menu.

Note that the timezone is shown correctly for full iCloud backups but might be also shown always in UTC if only selected categories have been downloaded.

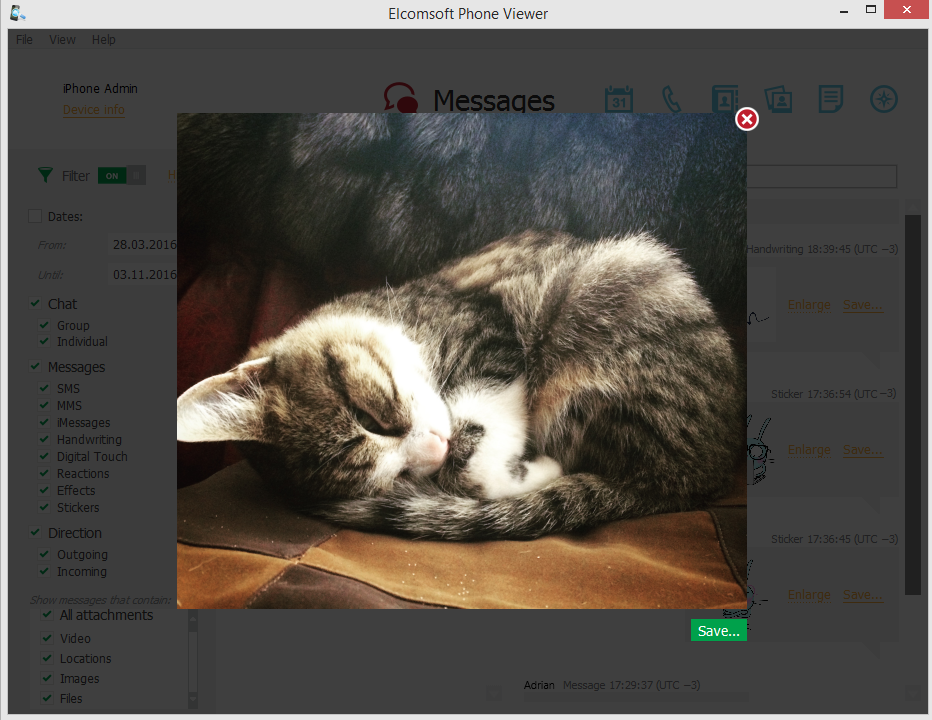

clip0003



For iOS devices, you can also switch between Actual and Deleted messages. Recovery of deleted messages may take some time (the first time when you select Deleted). Unfortunately, not all deleted messages can be recovered; moreover, it is not always possible to recover the particular contact the message has been sent/received to/from (those ones are grouped under Unknown). Date/time is also not available in many cases, and message contents may look corrupted.



iphone_deleted_message





Searching and Filtering



To perform searches in Messages, enter the search request in the search field and press Enter. The search results will be highlighted in yellow.



To filter out the messages, open the Filter pane by clicking the filter2 icon on the left.

Enable filtering by switching the On/Off toggle, and define the filtering options:

Date: filters messages by date. Define the From and Until dates.

Chat: filters messages by chat.

Select the SMS, MMS, iMessages, Handwriting, Digital Touch, Reactions, Effects, or Stickers check boxes to filter messages by their types. Define whether you need the Incoming or Outgoing messages.

All Attachments/Voice/Audio/Video/Locations/Contacts/Images/Files/Appointments: filters messages by the attachment type.

NOTE: When using filter options, you will be able to view only the records allowed by your license type.



To copy the whole message, right-click on it and select Copy message. To copy a part of the message, click the area where the text is to be copied from, highlight the text, right-click and select Copy or Select All.

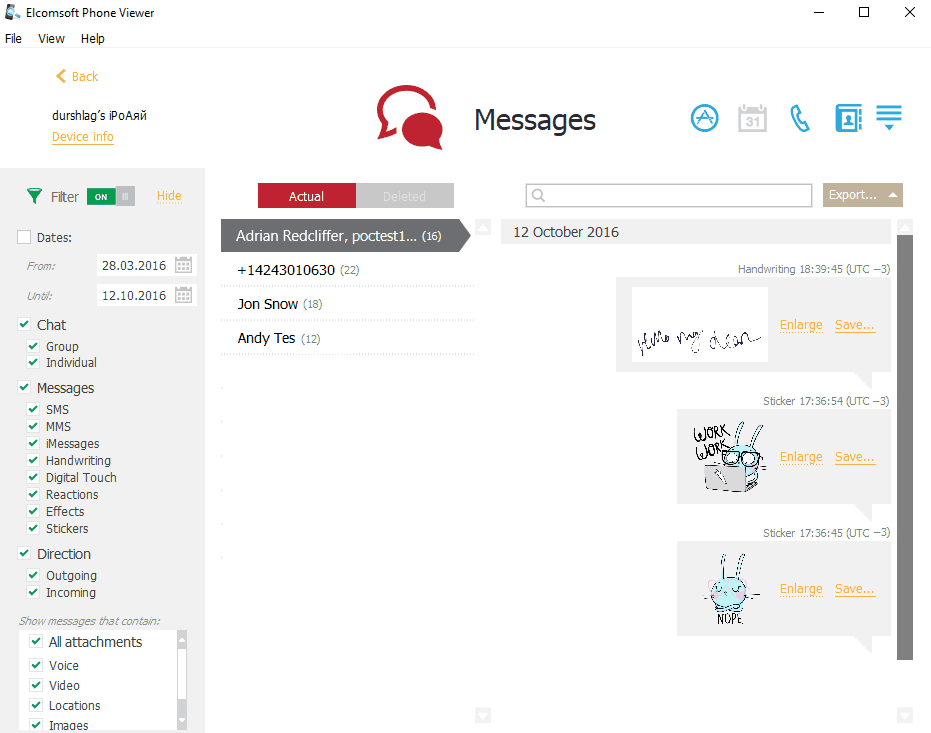

iphone_messages
